Mcintosh MC257 7-Channel Amplifier

MC257

New product

  • 250 Watts x 3 Channels; 200 Watts x 7 Channels
  • TripleView™ Power Output Meter
  • 94% increase in Dynamic Headroom
  • Dynamic Power Manager®; Power Guard®
  • Designed for home theaters

More details

$5,600.00

More info

Mcintosh MC257 7-Channel Solid State Amplifier

Bring your home theater dreams to life with the MC257 7-Channel Power Amplifier. Experience the latest blockbusters along with your favorite movies like never before in your home theater with the sound quality and power only McIntosh can deliver.

McIntosh MC257 Amplifier

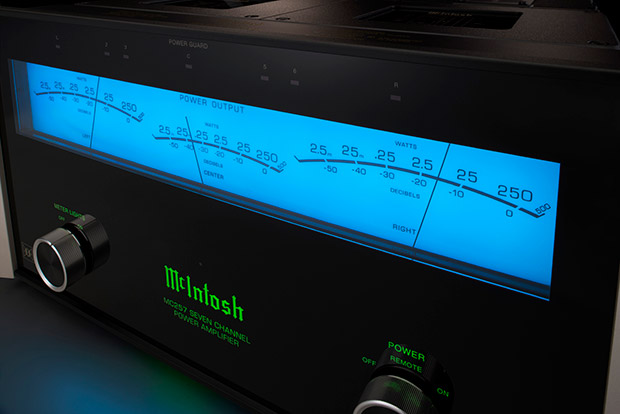

The MC257 is highlighted by our new eye-catching TripleView Power Output Meter that independently indicates the real time power reading of the amplifier’s three front channels. The easy-to-read, 15” (38 cm) wide TripleView meter design is a streamlined approach to the three individual meters found on our previous generation 7-channel home theater amplifier. Instead of three separate meter windows each housing a single meter, the TripleView features three of our traditional mechanical meters in a single meter enclosure. While a totally new design, each of the three pointers in the TripleView meter have the same inviting motion that McIntosh meters are known for and perform at the same high level as any of our meters. The captivating look and glow of the TripleView meter is sure to be a conversation starter, but its trademarked blue lighting can be turned off so as not to compete with your TV or movie screen.

In addition to the new TripleView meter, the MC257 features many other upgrades. When using just the front left, center and right channels, power output has been increased by 25% from 200 Watts per channel to 250 Watts per channel. When using all 7 channels, each will receive a healthy 200 Watts per channel. Regardless of how many channels are used, the full 200 or 250 Watts is delivered to either 4 or 8 Ohm speakers via our Dynamic Power Manager® (DPM) technology. Filter capacity has been increased by 20% which has produced an amazing 94% increase in dynamic headroom from 1.7dB to 3.3dB as well as improving low frequency performance – both key features in a home theater amplifier, especially when listening to an energetic soundtrack.

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    3 Front Channels only: 250W @ 4 or 8 Ohms
    All 7 Channels: 200W @ 4 or 8 Ohms
  • Number of Channels
    7
    (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
  • Total Harmonic Distortion
    0.005%
  • S/N below rated output
    108dB
  • Dynamic Headroom
    3.3dB
  • Damping Factor
    >70 @ 4 Ohms
    >140 @ 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 100,000Hz

CONTROL

  • Remote Power Control
    Yes, 7 or 5 + 2 Channel
  • Multi-Channel DB25 Cable
    No

GENERAL SPECIFICATIONS

  • Circuit Configuration
    Push-Pull Complementary
  • Circuit Design
    Solid State
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Direct Coupled with Dynamic Power Manager®
  • Meters
    Yes
  • Meter Light Switch
    Yes
  • Balanced Input
    7
  • Front Panel
    Glass
  • Illumination
    Direct LED
  • Chassis Style
    Polished stainless steel & black painted steel

CONNECTIVITY

  • Speaker Binding Post Type
    Standard

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
  • Weight
    95 lbs (43 kg)
  • Shipping Weight
    128 lbs (58 kg)
  • Glass
  • Illumination
    LED Fiber Optic
  • Chassis Style
    Inverted

CONNECTIVITY

  • Speaker Binding Post Type
    Yes

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
  • Weight
    83 lbs (37.6 kg)
  • Shipping Weight
    116 lbs (52.6 kg)
