Mcintosh MC1502 2-Channel Vacuum Tube Amplifier

MC1502

New product

  • 150 Watts x 2 Channels
  • Unity Coupled Circuit Output Transformers
  • (8) KT88, (4) 12AX7A and (4) 12AT7 vacuum tubes

More details

$6,100.00

More info

Mcintosh MC1502 2-Channel Vacuum Tube Amplifier

The MC1502 Vacuum Tube Amplifier is a stereo amplifier designed for home audio and home music systems that produces 150 Watts per channel. It is the direct replacement to our award winning MC2152 Limited Edition 70th Anniversary Vacuum Tube Amplifier, which was released in celebration of our 70th Anniversary that occurred in 2019. The new MC1502 has identical audio specifications and sound reproduction performance of the heralded MC2152 but in a more customary McIntosh design.

McIntosh MC1502 and MC275 Amplifier
MC1502 (left) with MC275 (right).

The MC1502 shares the timeless styling of our classic MC275 Vacuum Tube Amplifier. As the MC1502 has twice the stereo power rating of the MC275 (150 Watts vs. 75 Watts) and is physically larger, in many ways it can be considered the MC275's big brother. And while a pair of MC275s can be run in mono to achieve the 150 Watts per channel output of the MC1502, the MC1502 boasts a better signal-to-noise ratio of 112dB vs. 105dB for the MC275 pairing – producing an even quieter performance than the already quiet MC275.

McIntosh MC1502 Amplifier

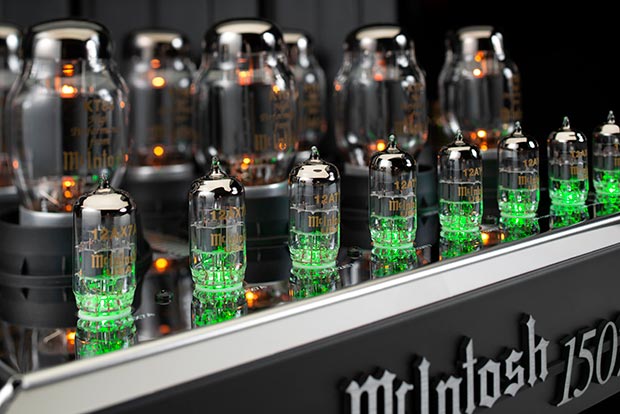

The large KT88 output vacuum tubes are located behind the smaller 12AX7A and 12AT7 vacuum tubes; these eight smaller tubes glow green.

The MC1502 is powered by eight KT88 output vacuum tubes, with four assigned to each stereo channel. It also has eight small signal tubes, consisting of four 12AX7A and four 12AT7 vacuum tubes; two of each of these vacuum tubes are dedicated to each audio channel. The 12AX7A vacuum tubes are for the Balanced and Input amps, while the 12AT7 tubes are for the Voltage and Driver amps. All the vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder coated finish.

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    150W @ 2, 4 or 8 Ohms
  • Number of Channels
    2
  • Total Harmonic Distortion
    0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
    <0.20% at 1W, 20Hz to 20,000Hz
  • S/N below rated output
    112dB
  • Dynamic Headroom
    1.2dB
  • Damping Factor
    >18
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 70,000Hz

CONTROL

  • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A

CONNECTIVITY

  • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts

GENERAL SPECIFICATIONS

  • Circuit Configuration
    Unity Coupled
  • Circuit Design
    Vacuum Tube
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Unity Coupled Output Transformer
  • Meters
    No
  • Meter Light Switch
    N/A
  • Balanced Input
    2
  • Front Panel
    N/A
  • Illumination
    Small Signal Tubes: Green, Natural
  • Chassis Style
    Polished Stainless Steel

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    18-1/4" (46.4cm) x 10-1/4" (26cm) (including feet) x 21" (53.3cm)
  • Weight
    118 lbs (53.5 kg)
  • Shipping Weight
    135 lbs (61.2 kg)
